Tie Rod Assembly Note

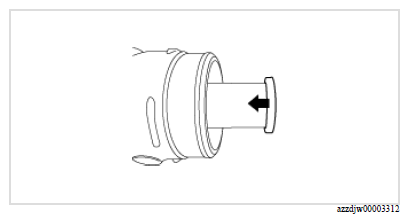

  1. If the stopper is placed at the steering rack end, move the stopper in the direction of the arrow so that a wrench can be hooked to the steering rack end.
    • The figure shows the left side (same as right side).
    G16712166Courtesy of MAZDA MOTORS CORP.

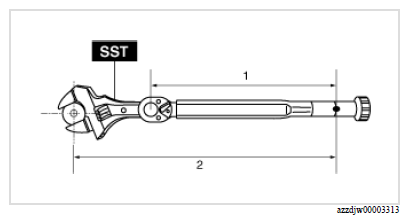

  2. As shown in the figure SST Install the SST to the torque wrench as shown in the figure, set it on the tie rod, and measure shown in the figure.
    G16712167Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    49 JP02 001

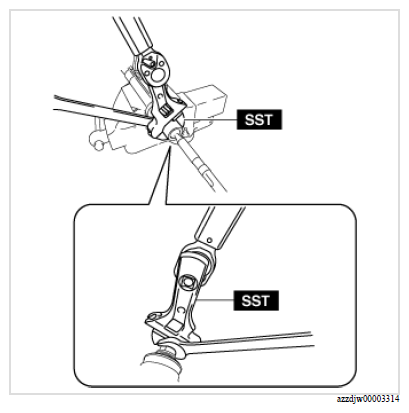

  3. After calculating the tightening torque with the following formula: SST And tighten the inner ball joint.
    • The figure shows the left side (same as right side).
    G16712168Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    49 JP02 001

    Formula

    Tjtimes (L/A)

    T: Tightening torque

    L: Torque wrench effective length (dimension 1)

    A: overall effective length (dimension 2)

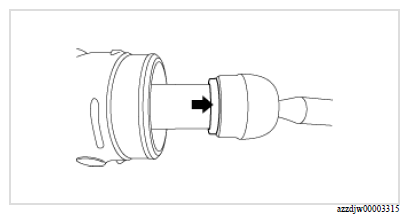

  4. Move the stopper at the steering rack to the tie rod end.
    • The figure shows the left side (same as right side).
G16712169Courtesy of MAZDA MOTORS CORP.
