Steering Gear And Linkage Removal/Installation: Notes

D-code

32280

WARNING:

The temperature of the steering gear (EPS motor) is high just after turning the steering mechanism from lock to lock repeatedly, and it may cause severe burns. Before performing the work, verify that the steering gear has cooled down.
Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

CAUTION:

If the steering wheel rotates after the steering shaft and the steering gear are disconnected, the internal parts of the clock spring could be damaged. After disconnecting the steering shaft, secure the steering wheel using tape or cable to prevent it from rotating.
The EPS will not operate normally if the EPS CM configuration is not completed. Always perform the EPS CM auto configuration after replacing the EPS CM so that the EPS will operate normally.
If the steering column is dropped it could result in internal damage to the EPS CM, therefore be careful not to drop it. If the EPS CM receives an impact, replace it.
If the steering gear and linkage are stored in a humid place, the EPS system may not operate properly when installed to the vehicle. Store the steering gear and linkage in a suitable place.

NOTE:

The EPS CM stores the vehicle specification information.
A new EPS CM does not store the vehicle specification information.
When the main power is switched ON (READY off or on) after replacing the EPS CM, the EPS CM reads data from the instrument cluster via CAN communication to perform automatic configuration.
To completely cut off the power supply to the EPS system, do not disconnect the battery within 60s after the main power is switched OFF.
Do not replace the steering gear and linkage (EPS system) with that of another vehicle even if they are the same model.
Before connecting the EPS CM connector, remove the fuse or disconnect the battery to interrupt the power supply completely.

For PYUL, perform the following procedure:
1. Lower Engine Component 50 mm. (See ENGINE MOUNT REMOVAL/INSTALLATION [PYUL] .)
For H3T, perform the following procedure:
1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
2. Remove the capsule cover. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
3. Remove the cowl grille cover assembly. (See COWL GRILLE REMOVAL/INSTALLATION .)
4. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
5. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION (L.H.D). .)
6. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
7. Remove the side cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
8. Remove the cowl grille bracket. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
9. Remove the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
10. Remove the strut tower bar. (See DRIVER-SIDE STRUT TOWER BAR REMOVAL/INSTALLATION .) (See PASSENGER-SIDE STRUT TOWER BAR REMOVAL/INSTALLATION .)
11. Remove the engine compartment insulator (upper). (See ENGINE REMOVAL/INSTALLATION [H3T] .)
12. Remove the air cleaner assembly. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
13. Remove the front under cover No. 2. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
14. Remove the front under cover No. 1. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
15. Remove the front under cover No. 3. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
16. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
17. Perform the high voltage handling. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
18. Disconnect the ground plate. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
19. Partially peel back the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
20. Remove the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
21. Remove the front deflector. (See FRONT DEFLECTOR REMOVAL/INSTALLATION .)
22. Remove the front splash shield. (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
23. Remove the edge rubber. (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
24. Remove the latch cover. (See FRONT BUMPER REMOVAL/INSTALLATION .)
25. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
26. Remove the center seal plate. (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
27. Remove the bracket (bumper upper side). (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
28. Remove the intake air guide (upper). (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
29. Remove the seal plate. (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
30. Remove the radiator mount bracket. (See RADIATOR REMOVAL/INSTALLATION [H3T] .)
31. Remove the member bracket. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [AWD] .)
32. Lower Engine Component 50 mm. (See ENGINE MOUNT REMOVAL/INSTALLATION [H3T] .)
Remove the front stabilizer. (See FRONT STABILIZER REMOVAL [AWD] .) (See FRONT STABILIZER INSTALLATION [AWD] .)

Remove using the procedure shown in the figure.

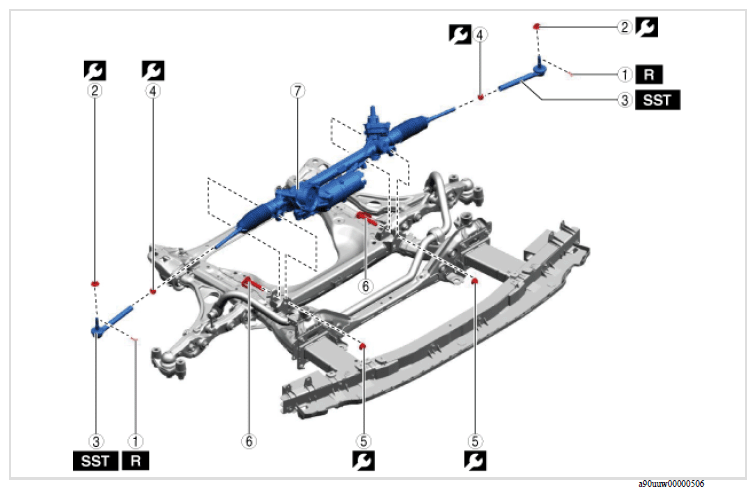

Fig 1: Steering Gear And Linkage Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Procedure	Part name	Applicable condition
1	Snap pin	Continuous	Replacement part	-	-
2	Nut	Continuous	-	-	74.5 N.m {7.6 kgf.m, 55 ft.lbf}
3	Tie-rod end (See TIE-ROD END REMOVAL NOTE ) (See TIE-ROD END INSTALLATION NOTE )	Continuous	-	49 T028 3A0	-
4	Nut	Continuous	-	-	83.5 N.m {8.5 kgf.m, 61.45 ft.lbf}
5	Nut	Continuous	-	-	123.5 N.m {12.6 kgf.m, 91.2 ft.lbf}
6	Bolt	Continuous	-	-	-
7	Steering gear and linkage (See STEERING GEAR AND LINKAGE INSTALLATION NOTE )	Continuous	-	-	-

Install in the reverse order of removal.
If the steering gear and linkage is replaced, perform the configuration. (Refer to [ Configuration] in the appropriate troubleshooting information )
