Air bag module connector connection note

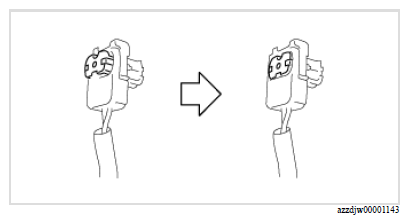

Press in the stopper plate as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
