Remove Clock Spring: Notes
WARNING:
- Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)
CAUTION:
- If the clock spring is not adjusted, the spring wires in the clock spring may be overtightened and break when the steering wheel is rotated. Be sure to adjust the clock spring after installation.
NOTE:
- Perform clock spring removal/installation with the front tires in a straight-ahead condition.

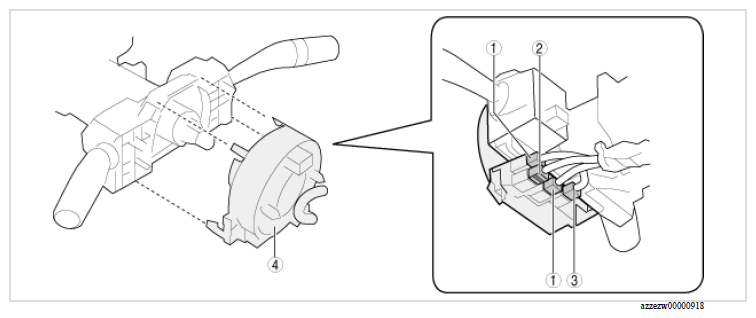

- Remove using the procedure shown in the figure.
PART NAME DESCRIPTION
| Step | Part name | Applicable condition |
|---|---|---|
| 1 | Connector | - |
| 2 | Connector (See Connector disconnection note ). |
- |
| 3 | Connector | With steering angle sensor |
| 4 | Clock spring (See Clock spring removal note ). |
- |
