Air bag module connector disconnection note

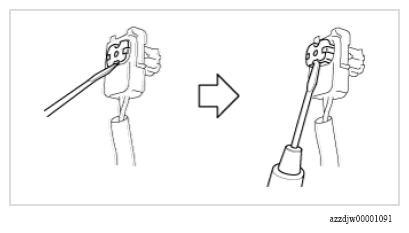

Lift the stopper plate as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
