Driver side air bag module removal note
CAUTION:

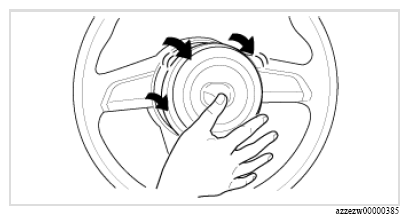

- Hold the driver side air bag module when releasing its securement. Otherwise, it may fall off and be damaged.
NOTE:
- The following tool is recommended for pressing the snap spring.
- Recommended tool
- Hex screwdriver (
6)
- Hex screwdriver (
- Recommended tool

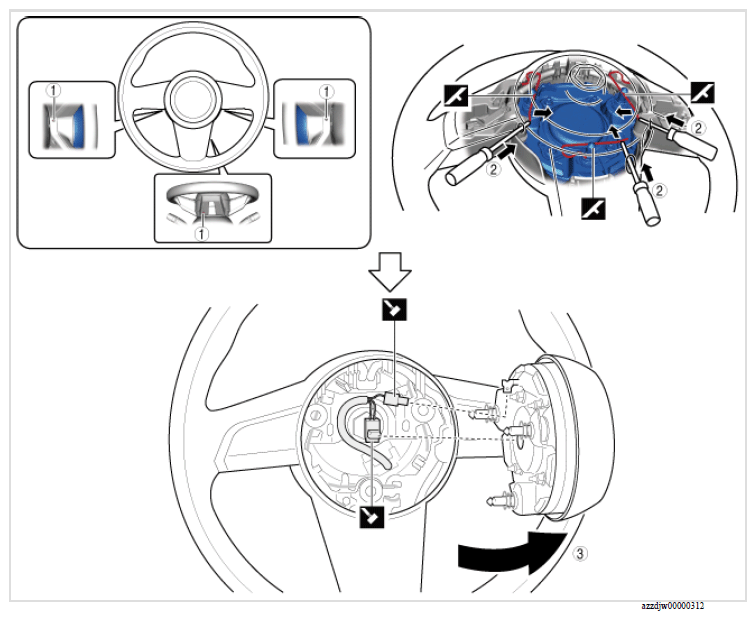

- Remove the driver's air bag module as shown in the diagram.
Standard deployment control system
Two-step deployment control system
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| (1) (2)... | Servicing procedure |
