Remove Driver Side Front Scuff Plate: Notes

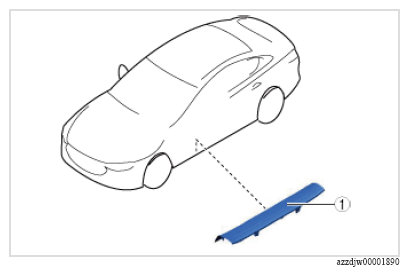

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
G16707743Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Front scuff plate
(See Front scuff plate removal note ).
