Driver side lower panel removal note

  1. Partially peel back the seaming welt until the driver side lower panel can be removed.

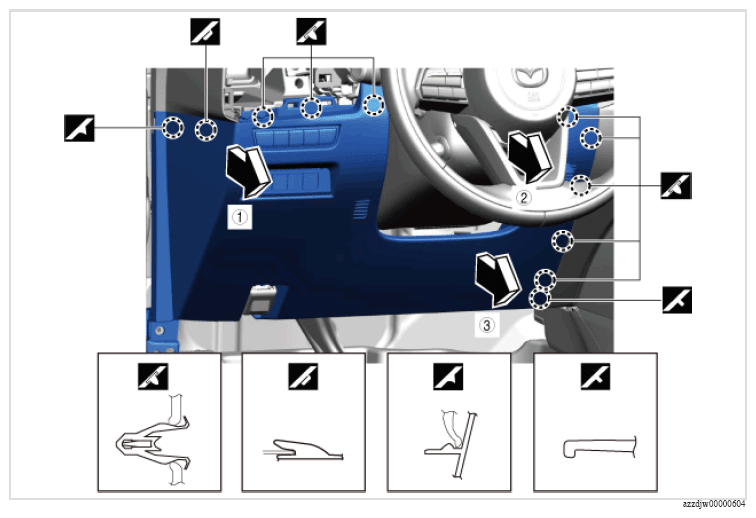

  2. Remove the driver side lower panel as shown in the figure.
    G16707753Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    (1) (2)... Servicing procedure

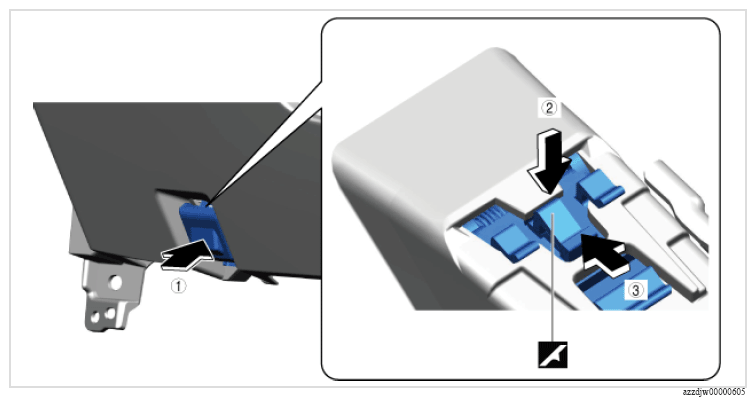

  3. Detach the tab on the hood release lever from the driver side lower panel as shown in the figure.
    G16707754Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    (1) (2)... Servicing procedure

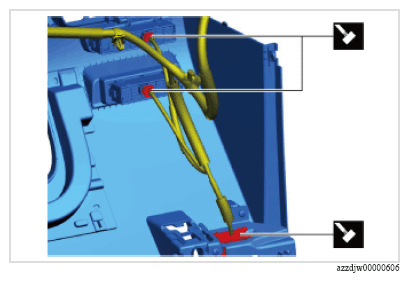

  4. Disconnect the connector shown in the figure.
G16707755Courtesy of MAZDA MOTORS CORP.
