Remove Upper Column Cover: Notes

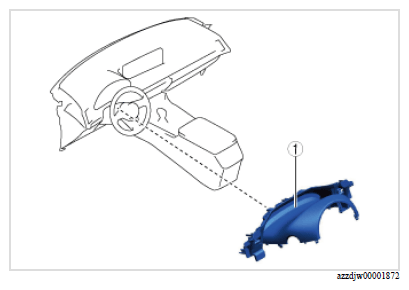

  1. Remove using the procedure shown in the figure.
G16712222Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Upper column cover
(See Upper column cover removal note ).
