Remove Wiper And Washer Switch: Notes

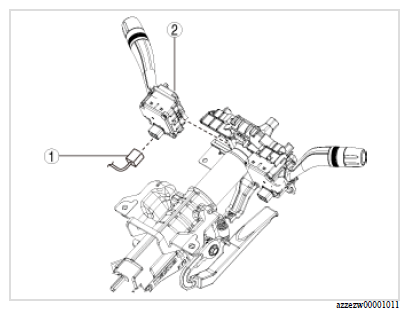

  1. Remove using the procedure shown in the figure.
G16712295Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Connector
2 Wiper and washer switch
(See Wiper and washer switch removal note ).
