Remove Power Liftgate (PLG) Control Module

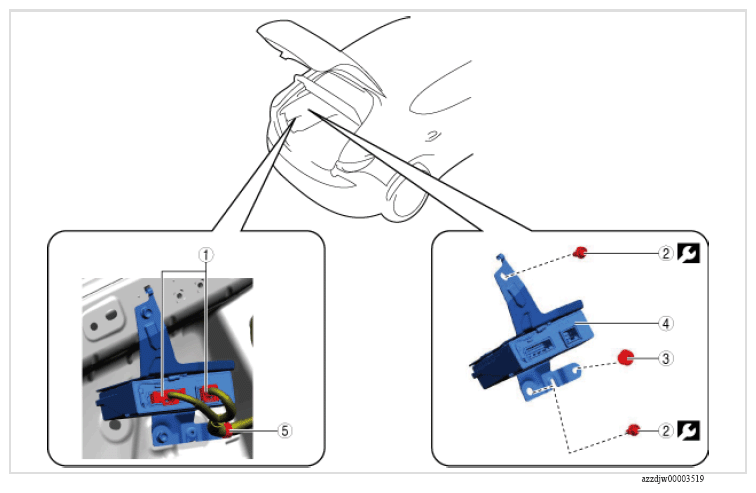

- Remove using the procedure shown in the figure below.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATION
| Procedure |
Part name |
 |
| 1 |
Connector |
- |
| 2 |
Bolt |
11 N.m {110 kgf.cm, 95 in.lb} |
| 3 |
Clip |
- |
| 4 |
Power liftgate control module |
- |
| 5 |
Wiring harness clip |
- |
