Remove Bracket: Notes

CAUTION:

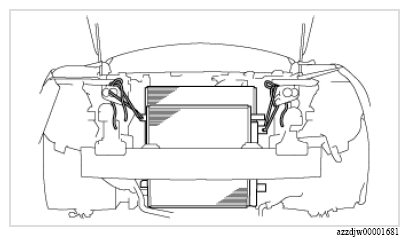

  • Perform the procedure with the condenser secured to the body with a string.
G16699232Courtesy of MAZDA MOTORS CORP.
  1. Remove using the procedure shown in the figure.

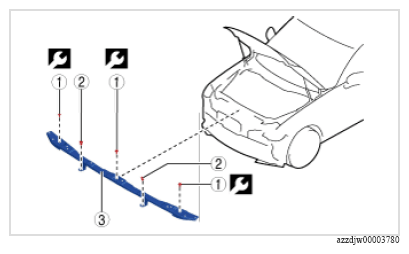

    Fig 1: Bracket Bolt With Torque Specifications
    G16699233Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt 11 N.m {110 kgf.cm, 95 in.lbf}
2 Fasteners -
3 Bracket
(See Bracket installation note ).		 -
