Remove Cover Assembly (Passenger's Side): Notes

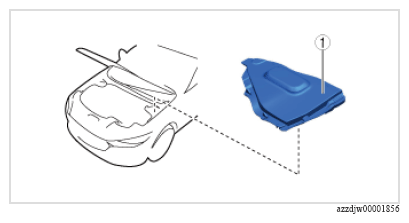

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
    G16699129Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Cover assembly
    (See COVER ASSEMBLY REMOVAL NOTE ).
