Selector lever knob installation note

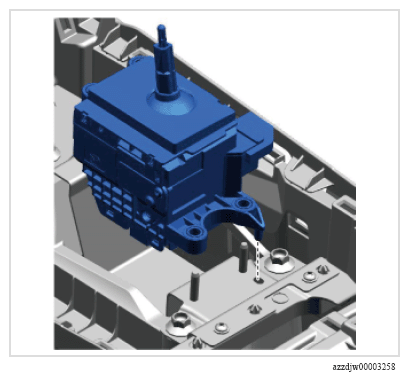

Insert the pin of the select lever into the positioning hole.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
