Shift panel removal note

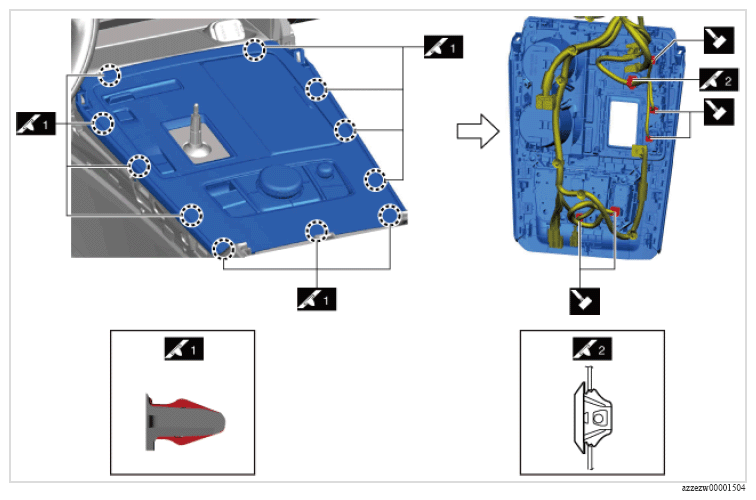

  1. Remove the shift panel as shown in the figure.
    G16708787Courtesy of MAZDA MOTORS CORP.
