Remove Power Disconnection Relay

  1. Remove using the procedure shown in the figure below

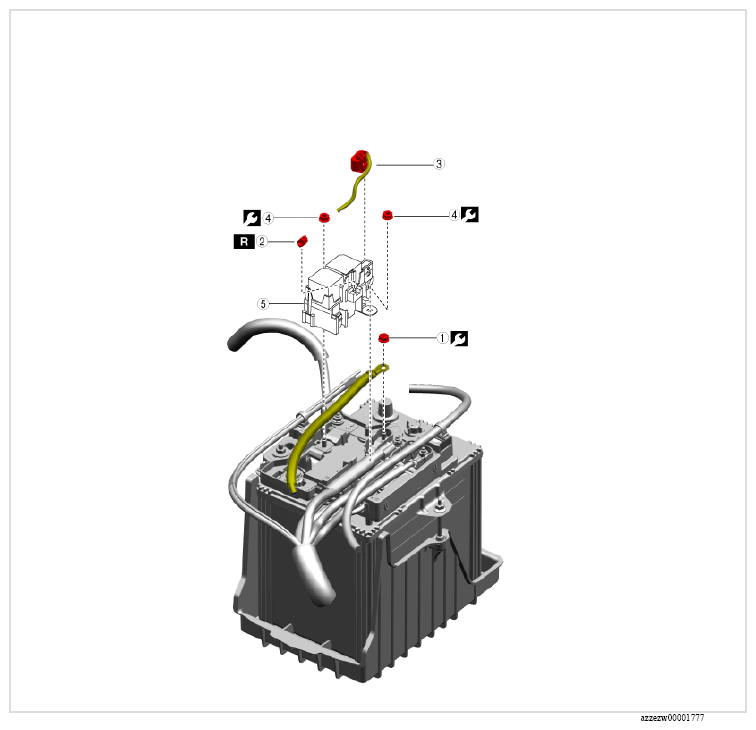

Fig 1: Power Disconnection Relay, Connector, Band And Nuts With Torque Specification
G16717768Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Procedure Part name
1 Nut - 5.5 N.m {54 kgf.cm, 46 in.lb}
2 Band Non-reusable -
3 Connector - -
4 Nut - 5.5 N.m {54 kgf.cm, 46 in.lb}
5 Power disconnection relay - -
