Remove Trunk End Trim: Notes

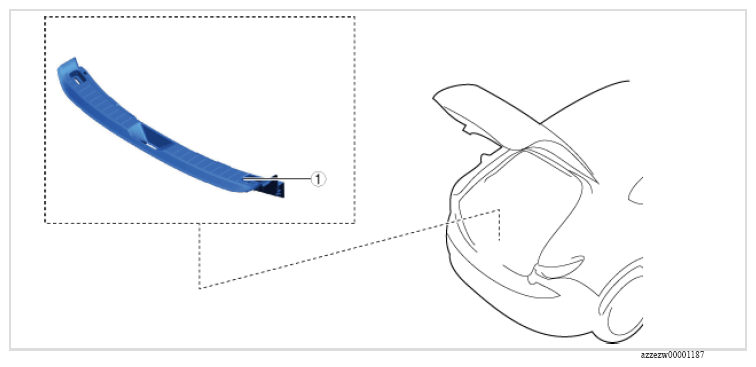

  1. Remove using the procedure shown in the figure below.
    G16693081Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Trunk end trim
    (See Trunk end trim component removal note ).
  2. Install in the reverse order of removal.
