Remove Steering Wheel Cover: Notes

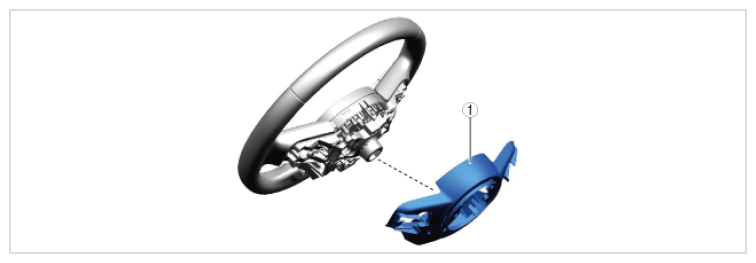

  1. Remove using the procedure shown in the figure.
G16706868Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Steering wheel cover
(See STEERING WHEEL COVER REMOVAL NOTE )
(See STEERING WHEEL COVER INSTALLATION NOTE )
