Remove Active Air Shutter: Notes
CAUTION:
- Perform the procedure with the active air shutter secured to the body with a string.

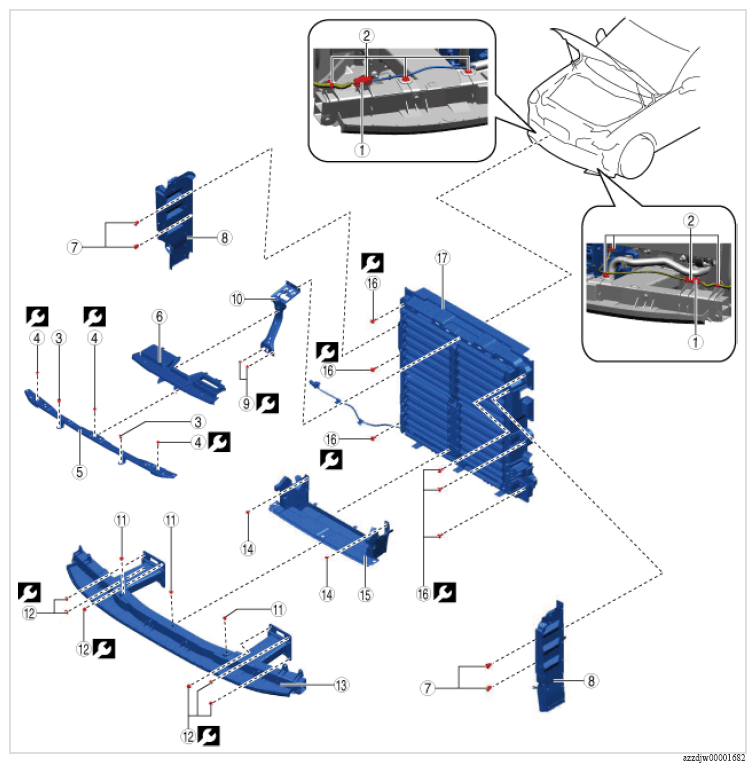

- Remove using the procedure shown in the figure.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Connector | - |
| 2 | Wiring harness clip | - |
| 3 | Fastener | - |
| 4 | Bolt | 11 N.m {110 kgf.cm, 95 in.lbf} |
| 5 | Bracket | - |
| 6 | Intake air guide (upper) (See Intake air guide (upper) removal note ). |
- |
| 7 | Fastener | - |
| 8 | Seal plate | - |
| 9 | Bolt | 11.5 N.m {117 kgf.cm, 102 in.lbf} |
| 10 | Lock stay | - |
| 11 | Fastener | - |
| 12 | Nut | 14.5 N.m {1.5 kgf.m, 10.75 ft.lbf} |
| 13 | Front crossmember extension and bumper stiffener lower | - |
| 14 | Fastener | - |
| 15 | Intake air guide (lower) (See Intake air guide (lower) removal note ). |
- |
| 16 | Bolt | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 17 | Active air shutter (See Active air shutter removal note ). |
- |
