Remove Latch Cover Component: Notes

  1. Remove using the procedure shown in the figure.

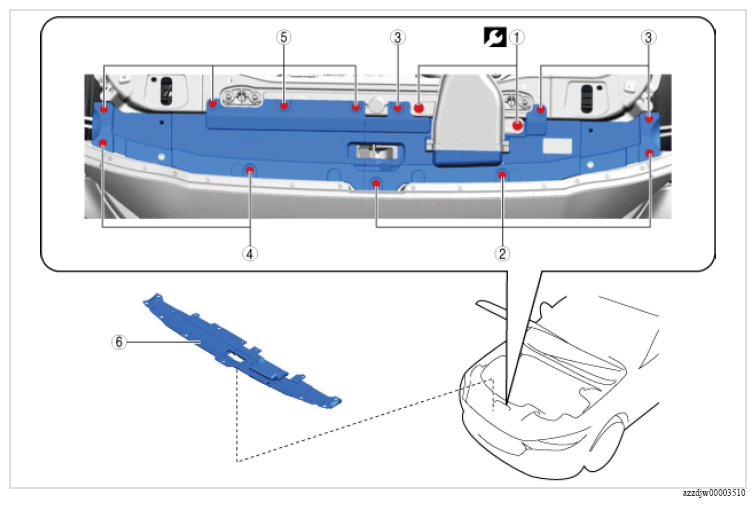

Fig 1: Latch Cover Component, Fasteners And Bolts With Torque Specification
G16691931Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Step Part name
1 Bolt 9.5 N.m {95 kgf.cm, 82 in.lbf}
2 Fastener -
3 Fastener -
4 Fastener -
5 Fastener -
6 Latch cover component
(See LATCH COVER COMPONENT REMOVAL NOTE )		 -
