Remove Power Window Subswitch (Front): Notes

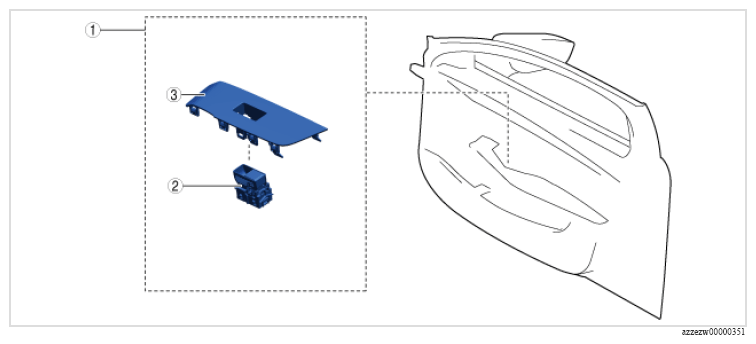

  1. Remove using the procedure shown in the figure below.
G16715840Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Power window subswitch component
(See Power window subswitch component removal note ).
2 Power window subswitch
(See Power window subswitch removal note ).
3 Power window subswitch cover
