Remove Driver's Side Glass Guide: Notes

Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).

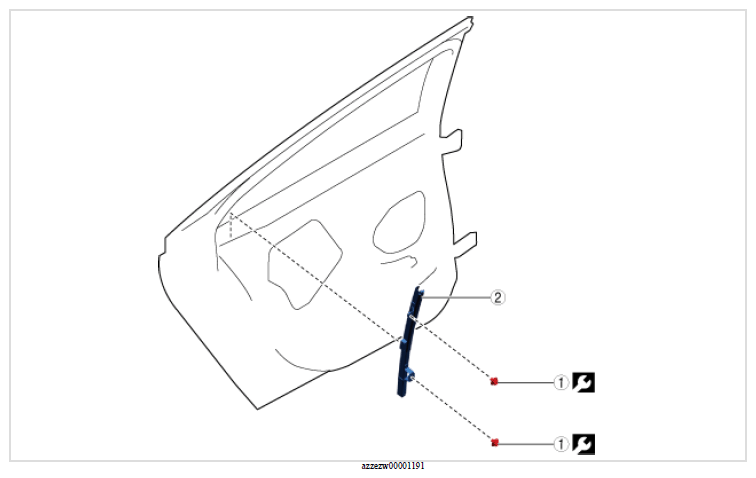

Fig 1: Driver'S Side Glass Guide And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Bolt	8.5 N.m {85 kgf.cm, 74 in.lbf}
2	Glass guide (See Glass guide removal note .)	-
