Remove Passenger Side Sunvisor: Notes

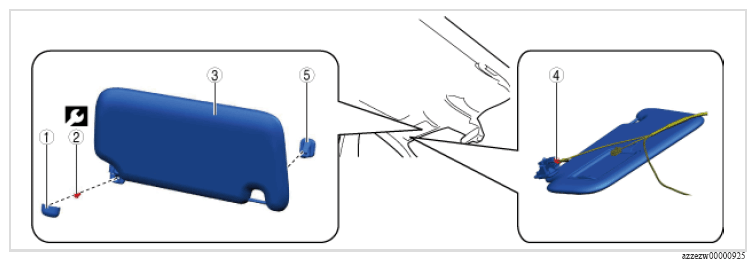

- Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | Applicable condition | |
|---|---|---|---|
| 1 | Sunvisor cap | - | - |
| 2 | Screw (See Sunvisor cap removal note ). |
- | 3 N.m {31 kgf.cm, 27 in.lbf} |
| 3 | Sunvisor | - | - |
| 4 | Connector | With vanity mirror illumination | - |
| 5 | Center adapter (See Center adapter removal note ). |
- | - |
