Remove Front Tires (RH): Notes

  1. Remove using the procedure shown in the figure.
    • The figure shows the right side (same as left side).

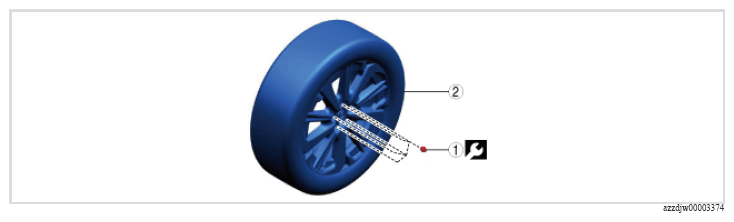

    Fig 1: Wheel And Tire Nut With Torque Specifications
    G16691869Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Step Part name
    1 Nut 127.5 N.m {13 kgf.m, 94.05 ft.lbf}
    2 Wheel and tire
    (See Wheel and tire installation note ).    		 -
