Console side panel removal note

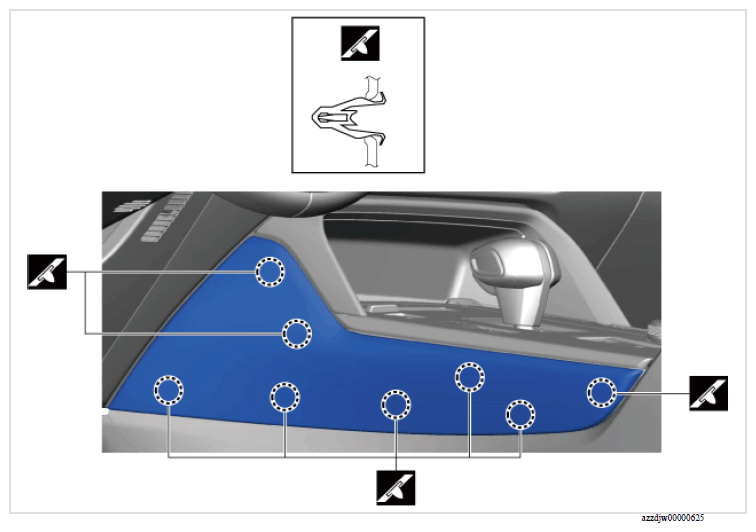

  1. Remove the console side panel as shown in the figure.
    • The figure shows the left side (same as right side).
G16712364Courtesy of MAZDA MOTORS CORP.
