Main Fuse Removal/Installation
>>
Remove Main Fuse Cover
>>
Clip removal note
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Clip removal note

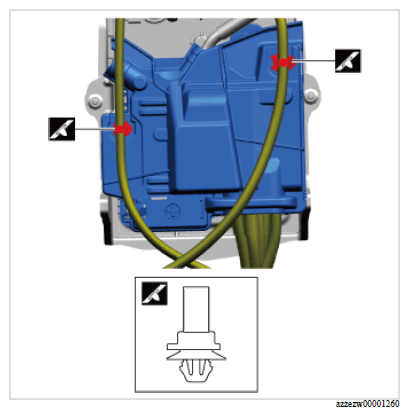

Remove the clips as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
