Remove Driver Side Relay And Fuse Block: Notes
NOTE:
- When replacing the relay and fuse block, it is necessary to switch terminals from the relay and fuse block terminal prior to replacement to the relay and fuse block terminal on the replacement. When switching terminals, ready the replacement relay and fuse block before pulling out the terminals of the relay and fuse block prior to replacement. This is because it is necessary to switch the terminals one at a time so that the installation positions are not mistaken.

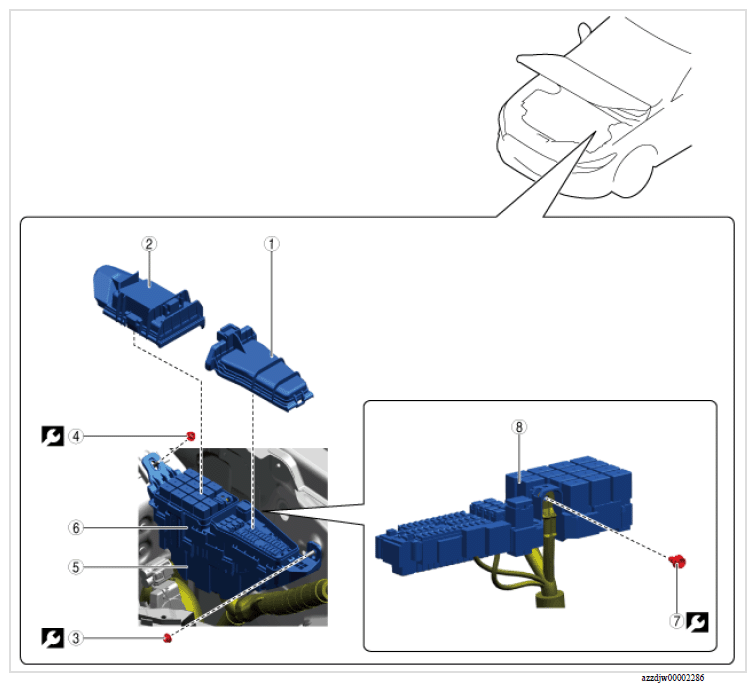

- Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Relay and fuse block upper cover (front) | - |
| 2 | Relay and fuse block upper cover (rear) | - |
| 3 | Nut | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 4 | Nut | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 5 | Relay and fuse block lower cover | - |
| 6 | Relay and fuse block middle cover | - |
| 7 | Bolt | 5.5 N.m {54 kgf.cm, 46 in.lbf} |
| 8 | Relay and fuse block (See Relay and fuse block installation note ). |
- |
