Relay and fuse block installation note

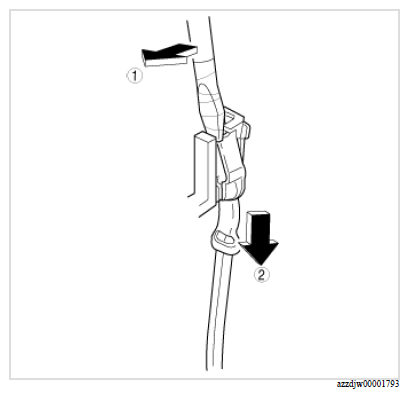

- Detach the fuse terminal from the stopper as shown in the figure.SYMBOL AND CONTENT DESCRIPTION
Symbol Content (1) (2)... Servicing procedure CAUTION:- If terminals are installed incorrectly, it could damage electronic components and burn wiring harnesses. When relocating terminals after replacing the relay and fuse block, line up the relay and fuse blocks of old and new parts and always relocate the terminals one by one so that the installation positions are correct while verifying the wiring diagram.
- A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After relocating the terminals, lightly pull the wiring harnesses to verify that they cannot be pulled out.
- Relocate all relay and fuse terminals to the new relay and fuse block.
