Front accessory socket removal note

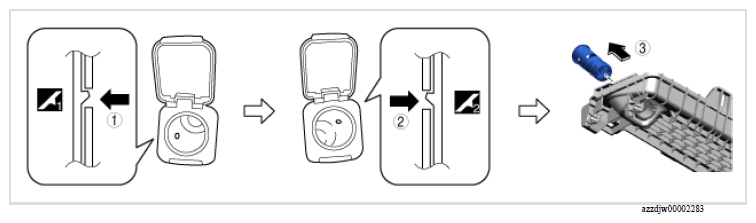

  1. Remove the front accessory socket in the order shown in the figure.
G16713353Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
