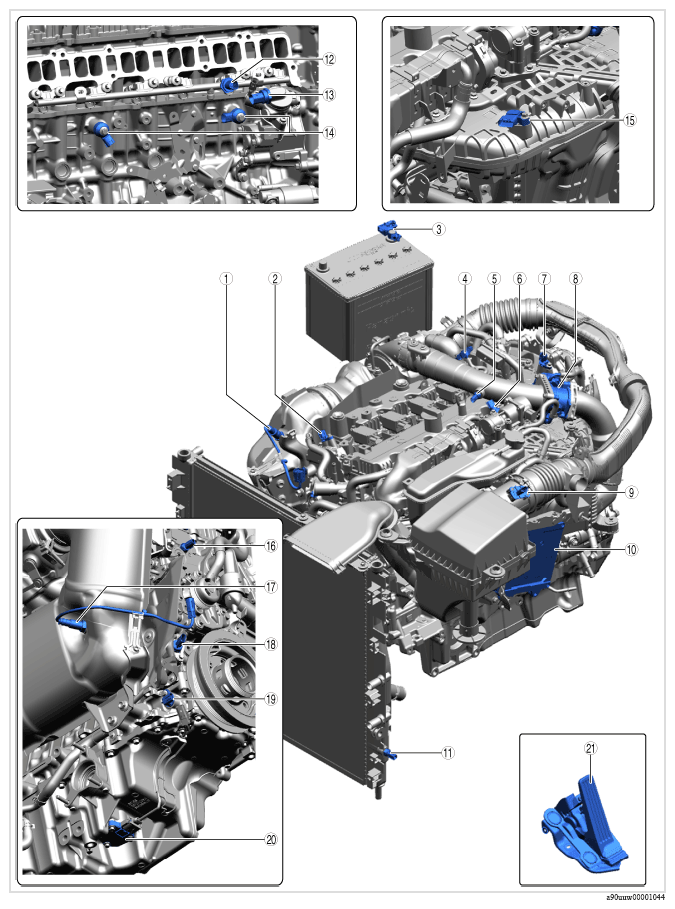

| 1 |
A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION [H3T] ). |
| 2 |
CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [H3T] ). |
| 3 |
Current sensor
(See CURRENT SENSOR REMOVAL/INSTALLATION [H3T] ).
(See CURRENT SENSOR INSPECTION [H3T] ). |
| 4 |
Boost pressure sensor
(See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [H3T] ).
(See BOOST PRESSURE SENSOR INSPECTION [H3T] ). |
| 5 |
Boost air temperature sensor
(See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [H3T] ).
(See BOOST AIR TEMPERATURE SENSOR INSPECTION [H3T] ). |
| 6 |
EGR pressure sensor
(See EGR PRESSURE SENSOR REMOVAL/INSTALLATION [H3T] ).
(See EGR PRESSURE SENSOR INSPECTION [H3T] ). |
| 7 |
Intake camshaft position sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [H3T] ). |
| 8 |
TP sensor No. 1/No. 2
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See THROTTLE POSITION (TP) SENSOR INSPECTION [H3T] ). |
| 9 |
MAF sensor/IAT sensor No. 1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No. 1 REMOVAL/INSTALLATION [H3T] ).
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [H3T] ).
(See MASS AIR FLOW (MAF) SENSOR INSPECTION [H3T] ). |
| 10 |
PCM (integrated with BARO sensor)
(See PCM REMOVAL/INSTALLATION [H3T] ).
(See PCM INSPECTION [H3T] ).
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [H3T] ). |
| 11 |
ECT sensor No. 2
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [H3T] ). |
| 12 |
High fuel pressure sensor
(See HIGH FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [H3T] ).
(See HIGH FUEL PRESSURE SENSOR INSPECTION [H3T] ). |
| 13 |
Low fuel pressure sensor/fuel temperature sensor
(See LOW FUEL PRESSURE SENSOR/FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [H3T] ).
(See LOW FUEL PRESSURE SENSOR INSPECTION [H3T] ). |
| 14 |
Knock sensor
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [H3T] ).
(See KNOCK SENSOR (KS) INSPECTION [H3T] ). |
| 15 |
MAP sensor/IAT sensor No. 2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No. 2 REMOVAL/INSTALLATION [H3T] ).
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [H3T] ).
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [H3T] ). |
| 16 |
ECT sensor No. 1
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [H3T] ). |
| 17 |
HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [H3T] ).
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION [H3T] ). |
| 18 |
Engine oil pressure sensor/engine oil temperature sensor
(See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [H3T] ).
(See ENGINE OIL TEMPERATURE SENSOR INSPECTION [H3T] ).
(See ENGINE OIL PRESSURE SENSOR INSPECTION [H3T] ). |
| 19 |
Exhaust camshaft position sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [H3T] ). |
| 20 |
Engine oil level sensor
(See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [H3T] ).
(See ENGINE OIL LEVEL SENSOR INSPECTION [H3T] ). |
| 21 |
Accelerator pedal position sensor No. 1/No. 2
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [H3T] ).
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [H3T] ). |
