Front Brake Disc Removal/Installation: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

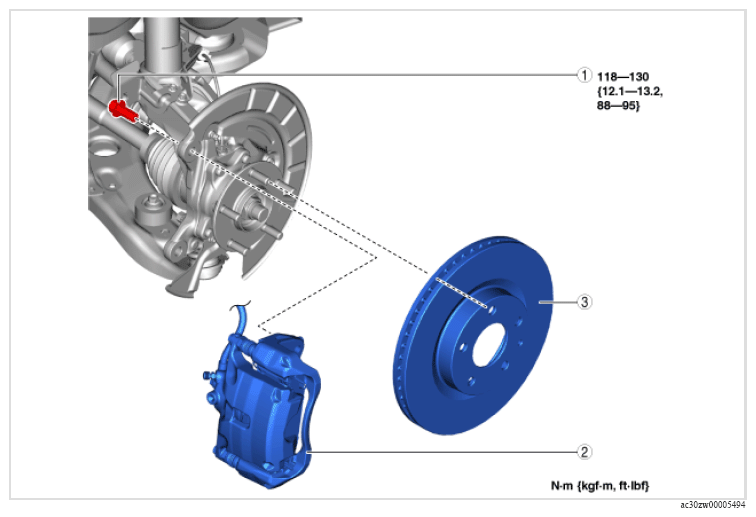

Fig 1: Front Brake Disc Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

FRONT BRAKE DISC COMPONENT OPERATION

Component no	Refer to
1	Bolt
2	Front brake caliper component (See FRONT BRAKE CALIPER COMPONENT REMOVAL NOTE .) (See FRONT BRAKE CALIPER COMPONENT INSTALLATION NOTE .)
3	Disc plate
