Guide Plate Installation Note
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

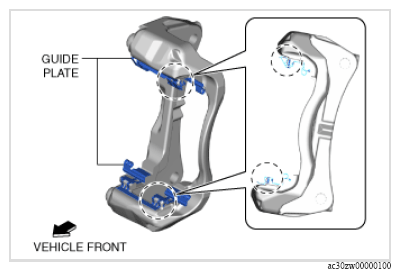

- When assembling the guide plates to the front brake mounting support, securely assemble them on the leading side and trailing side to each position shown in the figure. If the guide plates are assembled to the incorrect positions, it could become a source of noise.
