Perform Pre-engine Component Unloading Procedure: Notes

1. Remove in the order indicated in the table.

Step 1

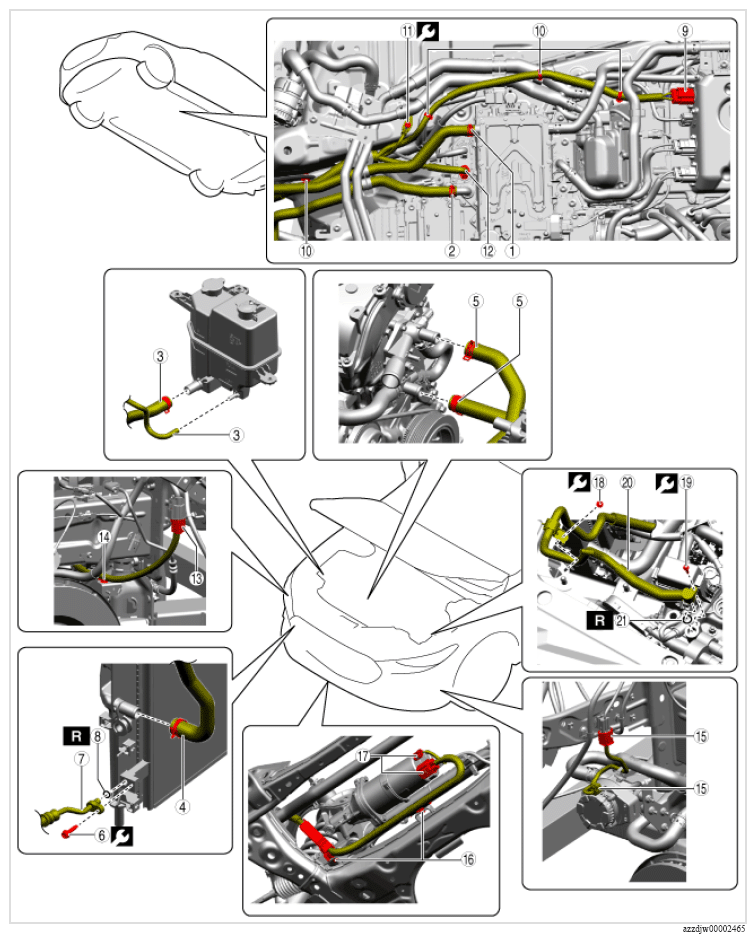

Fig 1: Pre-Engine Components Location With Torque Specification (Step 1)

Courtesy of MAZDA MOTORS CORP.

Step	Part name
1	Coolant hose	-	-
2	Coolant hose	-	-
3	Coolant hose	-	-
4	Radiator hose	-	-
5	Water hose	-	-
6	Bolt	-	9.5 N.m {95 kgf.cm, 82 in.lb}
7	Condenser refrigerant cooling piping	-	-
8	O-ring	Replacement part	-
9	Connector	-	-
10	Wiring harness clip	-	-
11	Bolt	-	11. N.m {110 kgf.cm, 95 in.lb}
12	Connector	-	-
13	Connector	-	-
14	Wiring harness clip	-	-
15	Connector	-	-
16	Wiring harness clip	-	-
17	Connector	-	-
18	Nut	-	8.5 N.m {85 kgf.cm, 73 in.lb}
19	Bolt	-	9.5 N.m {95 kgf.cm, 82 in.lb}
20	Refrigerant cooling piping	-	-
21	O-ring	Replacement part	-

Step 2

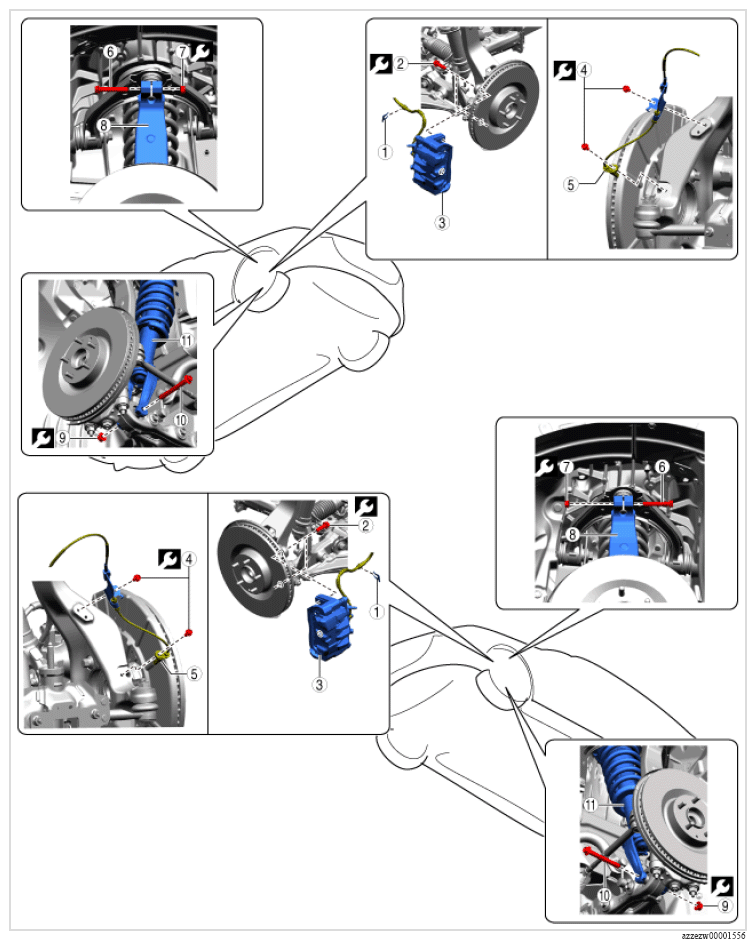

Fig 2: Pre-Engine Components Location With Torque Specification (Step 2)

Courtesy of MAZDA MOTORS CORP.

Step	Part name
1	Clip	-
2	Bolt	164. N.m {16.7 kgf.m, 120.8 ft.lb}
3	Front brake caliper component (See Front brake caliper component removal note ) (See Front brake caliper component installation note )	-
4	Bolt	9.5 N.m {95 kgf.cm, 82 in.lb}
5	Front ABS wheel-speed sensor	-
6	Bolt	-
7	Nut	42.5 N.m {4.3 kgf.m, 31.15 ft.lb}
8	Knuckle	-
9	Nut	158. N.m {16.15 kgf.m, 116.7 ft.lb}
10	Bolt	-
11	Strut damper component	-

Step 3

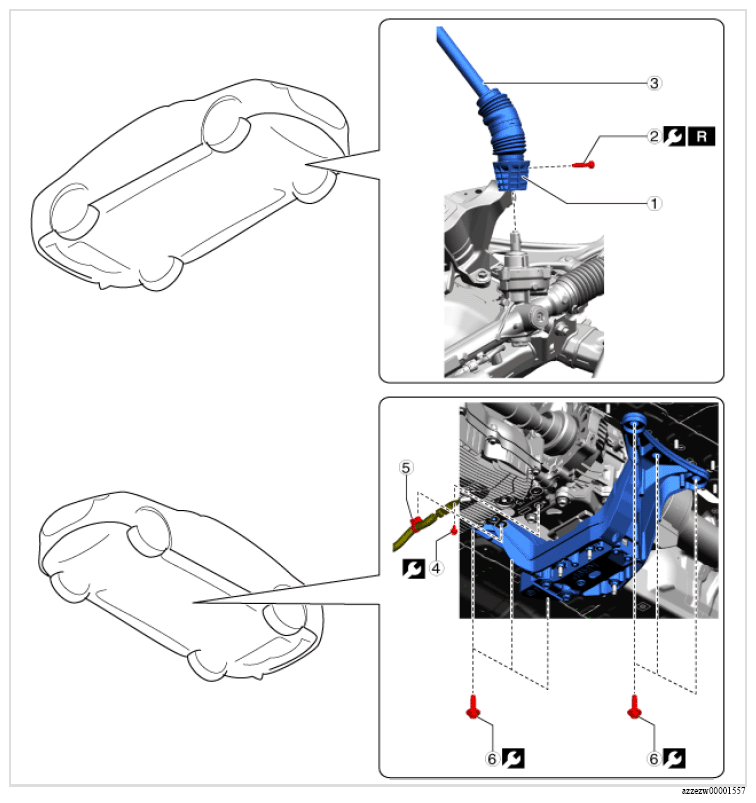

Fig 3: Pre-Engine Components Location With Torque Specification (Step 3)

Courtesy of MAZDA MOTORS CORP.

Step	Part name
1	Dust boot (See Dust boot removal note )	-	-
2	Bolt	Replacement part	29. N.m {2.95 kgf.m, 21.4 ft.lb}
3	Intermediate shaft	-	-
4	Bolt	-	11. N.m {110 kgf.cm, 95 in.lb}
5	Wiring harness clip	-	-
6	Bolt (See Bolt removal note )	-	56.5 N.m {5.75 kgf.m, 41.55 ft.lb}
