Remove Battery Cap

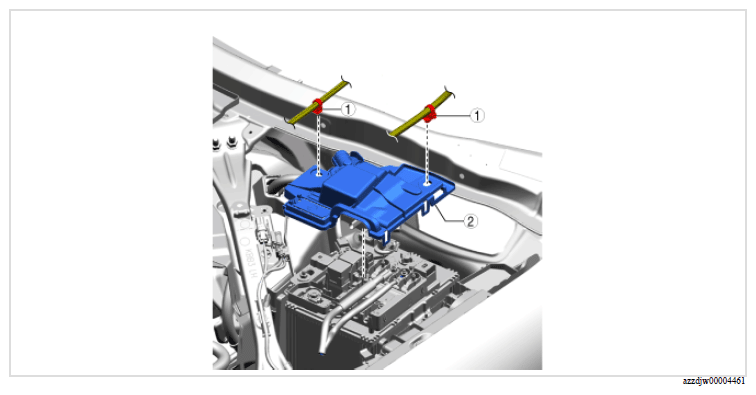

  1. Remove in the order indicated in the table.
G16705258Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Clip
2 Battery cap
