Tie-Rod End Replacement: Notes

D-code

WARNING:

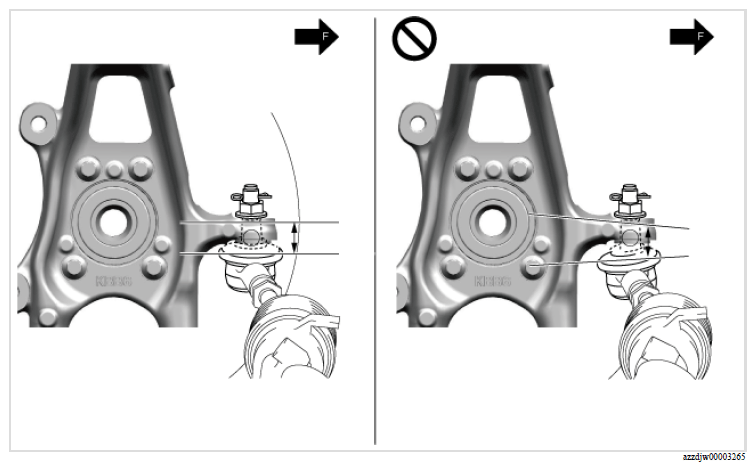

After replacement, confirm that the points shown in the figure are parallel with the vehicle on the ground (same for the right side).

Courtesy of MAZDA MOTORS CORP.

Cracks may occur in the boot of the outer ball joint. Install the outer ball joint in the correct position.
If the mounting position is not suitable, rotate the outer ball joint and adjust it to the proper position.

NOTE:

After installation, the wheel alignment shall be checked and adjusted if necessary.

Remove using the procedure shown in the figure.

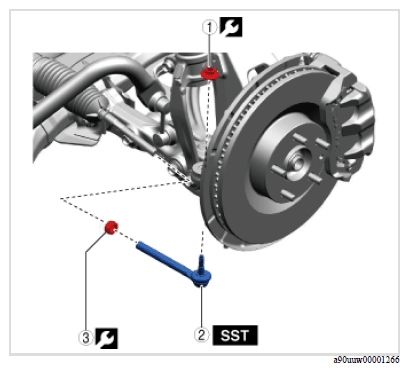

Fig 1: Tie-Rod End Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Procedure	Part name	Applicable condition
1	Nut	Continuous	-	74.5 N.m {7.6 kgf.m, 55 ft.bf}
2	Tie-rod end (See TIE-ROD END REMOVAL NOTE ) (See TIE-ROD INSTALLATION NOTE )	Continuous	49 T028 3A0	-
3	Nut	Continuous	-	83.5 N.m {8.5 kgf.m, 61.45 ft.lbf}

Install in the reverse order of removal.
Perform the wheel alignment pre-inspection. (See WHEEL ALIGNMENT PRE-INSPECTION .)
Perform the front wheel alignment. (See FRONT WHEEL ALIGNMENT .)
