Remove Driver Side Edge Rubber: Notes

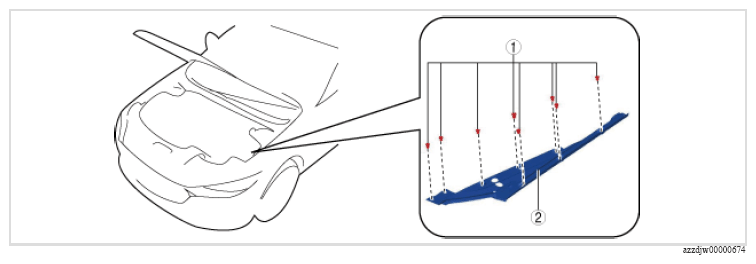

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
    G16691929Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Fastener
    2 Edge rubber
    (See Edge rubber removal note ).
