Remove Driver Side Front Over Fender Upper: Notes

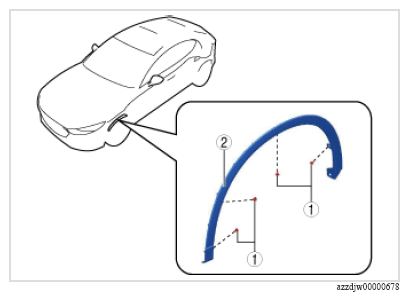

Remove using the procedure shown in the figure.

The figure shows the left side (same as right side).

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Fastener
2	Front over fender upper (See Front over fender upper removal note ). (See Front over fender upper installation note ).
