Remove Driver Side Strut Tower Bar: Notes

Remove using the procedure shown in the figure.

The figure shows the left side (same as right side).

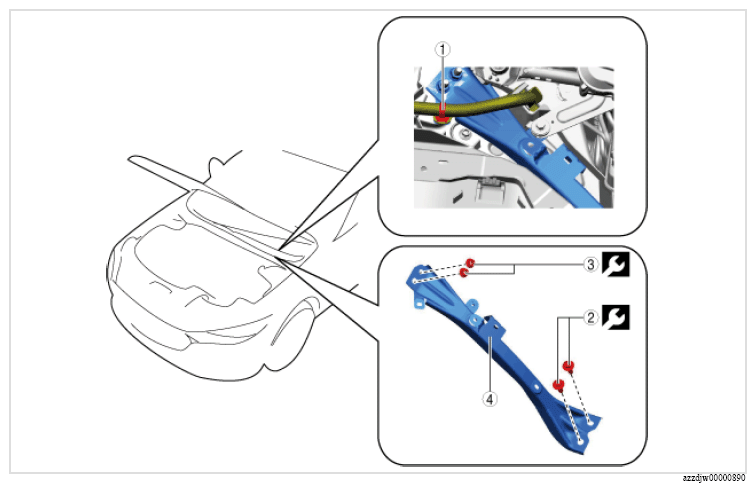

Fig 1: Driver Side Strut Tower Bar Components Location With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Wiring harness clip (See Wiring harness clip removal note ).	-
2	Bolt	35 N.m {3.55 kgf.m, 25.8 ft.lbf}
3	Nut	35 N.m {3.55 kgf.m, 25.8 ft.lbf}
4	Strut tower bar	-
