Front console box removal note

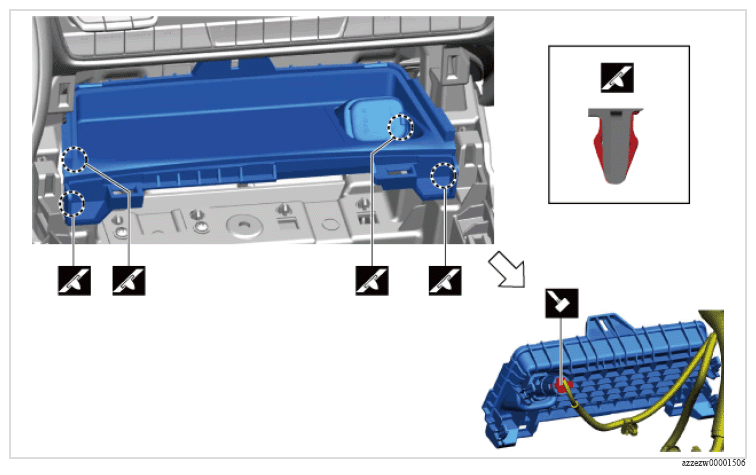

Remove the front console box as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
