Remove Rear Console: Notes

Remove using the procedure shown in the figure.

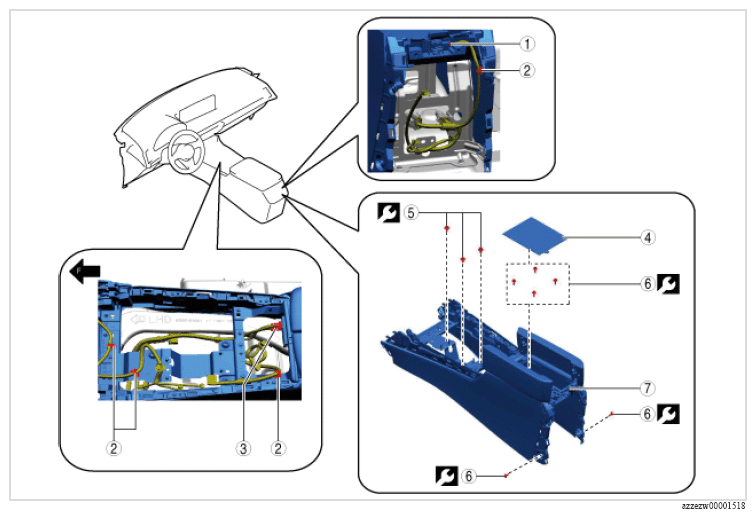

Fig 1: Rear Console Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name	Applicable condition
1	Connector	With rear console illumination	-
2	Wiring harness clip (See WIRING HARNESS CLIP REMOVAL NOTE ).	-	-
3	Connector	-	-
4	Cushion tape	-	-
5	Bolt	-	22 N.m {2.25 kgf.m, 16.3 ft.lbf}
6	Bolt	-	4 N.m {41 kgf.cm, 35 in.lbf}
7	Rear console (See REAR CONSOLE REMOVAL NOTE ).	-	-
