Remove Shift Panel: Notes

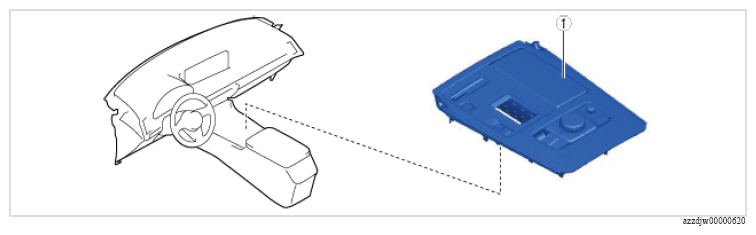

  1. Remove using the procedure shown in the figure.
    G16708786Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Shift panel
    (See SHIFT PANEL REMOVAL NOTE ).
