Remove Upper Panel: Notes

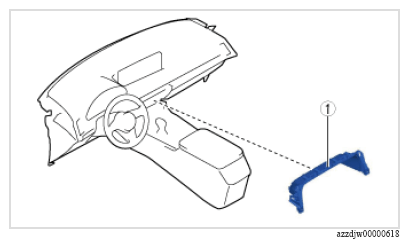

  1. Remove using the procedure shown in the figure.
    G16708887Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Upper panel
    (See UPPER PANEL REMOVAL NOTE ).
