Fuel Pump Unit Disassembly/Assembly: AWD

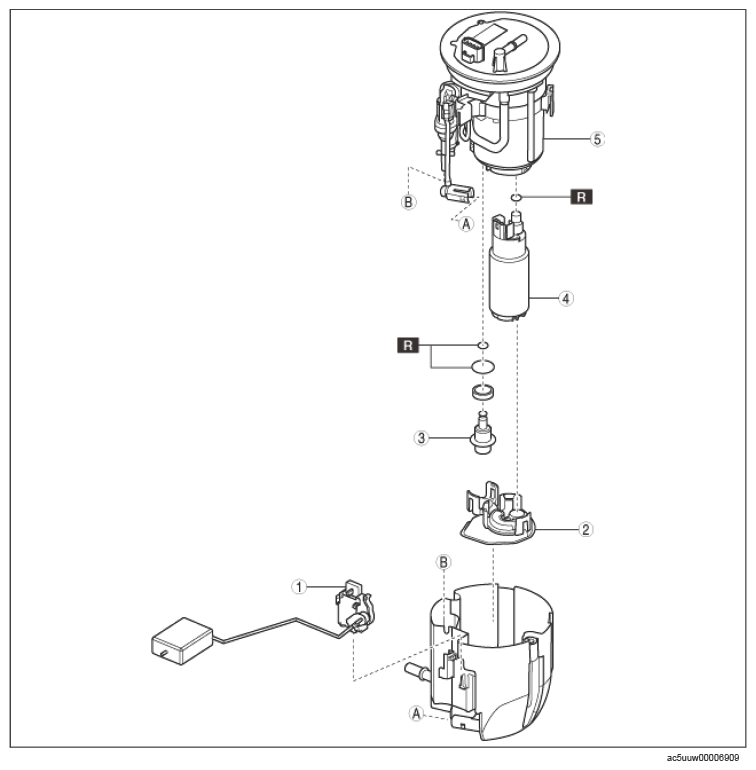

G15629818Courtesy of MAZDA MOTORS CORP.
FUEL PUMP UNIT COMPONENT OPERATIONS

Component No. Refer to
1 Fuel gauge sender unit
2 Fuel filter (low-pressure)
3 Pressure regulator
4 Fuel pump
5 Fuel filter (high-pressure)
