Snap Pin Installation Note

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

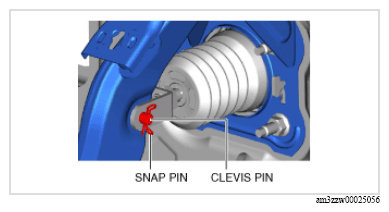

  1. Install the snap pin as shown in the figure.
G16374223Courtesy of MAZDA MOTORS CORP.
