Front Brake Caliper Installation Note
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the exposed area of the piston.

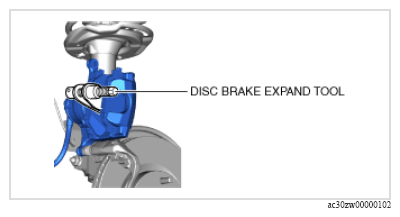

- Push the piston in using the commercially available disc brake expand tool.

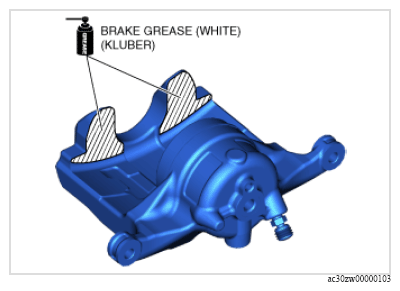

- Apply grease to the locations shown in the figure.
- Install the disc pads to the front brake mounting support.
- Return the front brake caliper to the original position and install the bolt.
