Control System Location Index

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

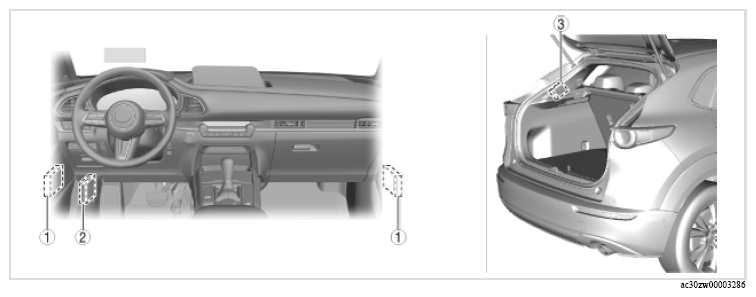

Fig 1: Control System Components Location

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Door electrical supply unit (See DOOR-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION .) (See DOOR-ELECTRICAL SUPPLY UNIT INSPECTION .)
2	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .) (See BODY CONTROL MODULE (BCM) INSPECTION .) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION .)
3	Electrical supply unit (ESU) (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION .) (See ELECTRICAL SUPPLY UNIT (ESU) INSPECTION .) (See ELECTRICAL SUPPLY UNIT (ESU) BRACKET REMOVAL/INSTALLATION .)
