Drive efficiency monitor verification procedure
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
- Select the "Information" button on the Home screen.
- Select [Drive Efficiency Monitor] on the information screen to display the warning guidance.

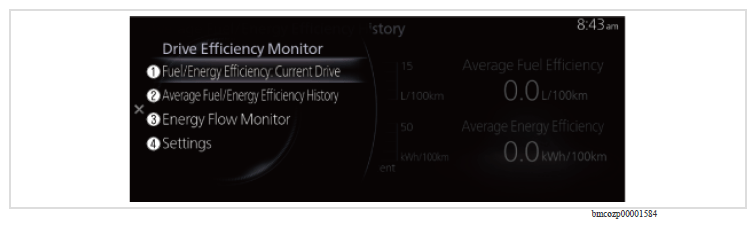

- The buttons on the menu screen operate as follows:
MENU AND CONTENT DESCRIPTION
| Menu | Content | |
|---|---|---|
| 1 | Fuel/Energy efficiency: Current drive | Displays the information regarding the current fuel economy/electrical power consumption rate. |
| 2 | Average fuel/energy efficiency history | Displays the information regarding the past fuel economy/electrical power consumption rate. |
| 3 | Energy flow monitor | Displays the system operation status. |
| 4 | Settings | Displays the settings for the fuel efficiency monitor. |
