Home Screen

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

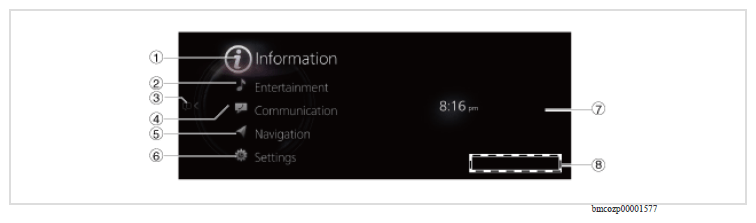

G16716839Courtesy of MAZDA
DISPLAY CONTENT AND REFERENCE DESCRIPTION

Display content Reference
1 Information Screen (See Information Screen ).
2 Entertainment Screen (See Entertainment Screen ).
3 Notification list (See Notification list ).
4 Communication Screen (See Communication Screen ).
5 Navigation Screen (1) (See Navigation Screen ).
6 Setting Screen (See Settings Screen ).
7 Apple CarPlay™ (2) (See Apple CarPlay™ ).
Android Auto™ (3) (See Android Auto™ ).
8 Status icon (See Status icon ).
(1) With car-navigation system

(2) When Apple CarPlay™ is available.

(3) When Android Auto™ is available.
