Active driving display setting

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

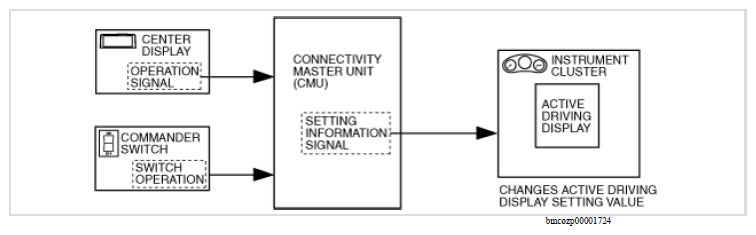

  1. When an operation signal is received/switch operation is detected, the connectivity master unit (CMU) sends a setting information signal to the instrument cluster based on the information from the user operations.
  2. The instrument cluster changes the setting value of the active driving display based on the setting information signal.
G16716880Courtesy of MAZDA
