Sound setting (sound quality setting/volume setting)

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

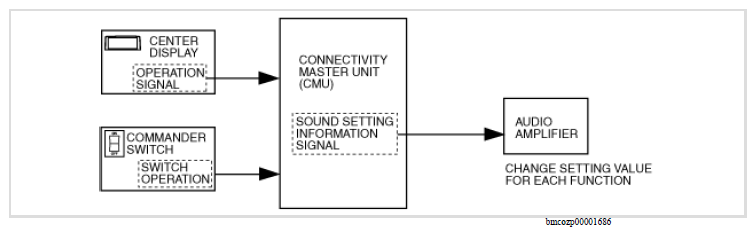

  1. When an operation signal is received/switch operation is detected, the connectivity master unit (CMU) sends a sound setting information signal to the audio amplifier based on the information from the user operations.
  2. The audio amplifier changes the setting value for each function based on the received sound setting information signal.
G16716878Courtesy of MAZDA
